Commercial, institutional & community

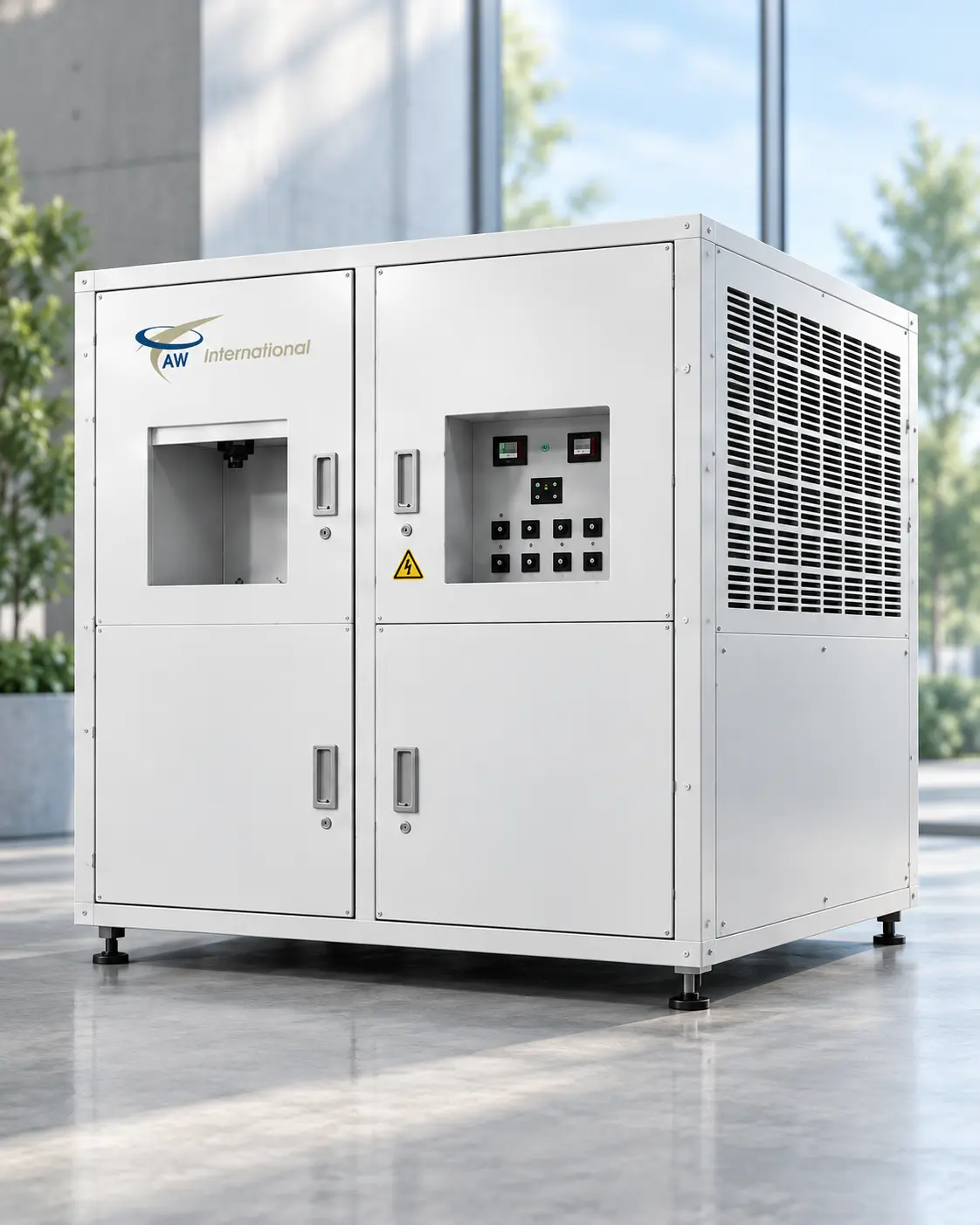

AWI1000L Atmospheric Water Generator
A high-volume system for organizations that need a locally generated water source at commercial or community scale.
Key facts
At a glance
Up to 1,000 liters (approximately 264.2 US gallons) per day
Approximately 900 liters (237.8 US gallons) rated daily output; up to 1,000 liters (264.2 US gallons) per day at 30°C and 80% relative humidity.
600 litres of standard storage
Larger engineered storage may be considered during project design where approved.
Commercial installation
1,700 × 1,450 × 1,920 mm; supplied weight 890 kg.
Automated treatment
E11 HEPA intake, multi-stage water treatment, UV protection and periodic circulation.
Scale
Built for larger daily demand

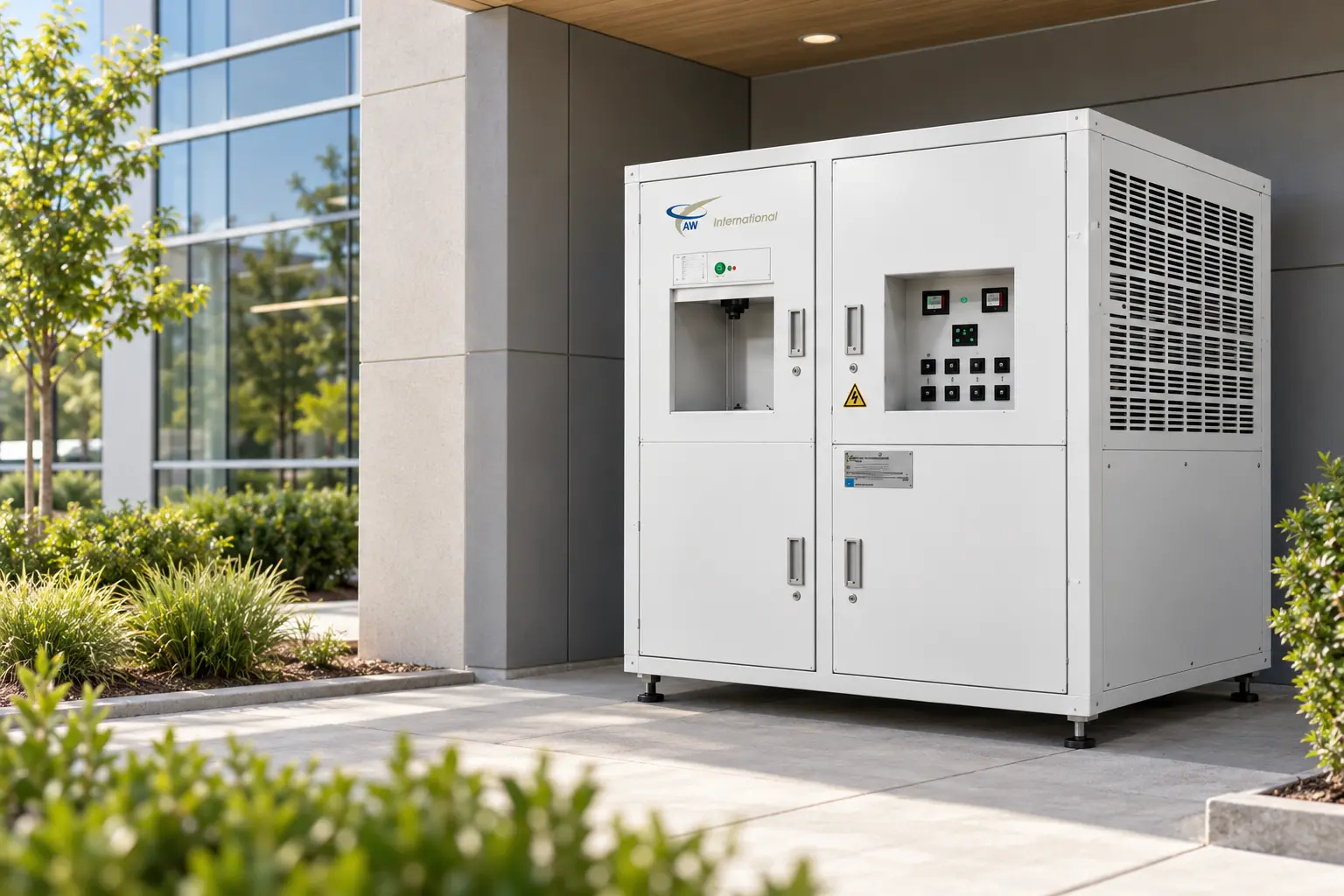

The AWI1000L applies the same core air-to-water process at a larger scale. It is designed for locations with suitable space, ventilation, three-phase electrical power, planned storage or distribution, and access for regular maintenance.
Each installation should begin with a site review covering local temperature and humidity, expected daily water demand, electrical supply, airflow, water distribution, drainage and service access.

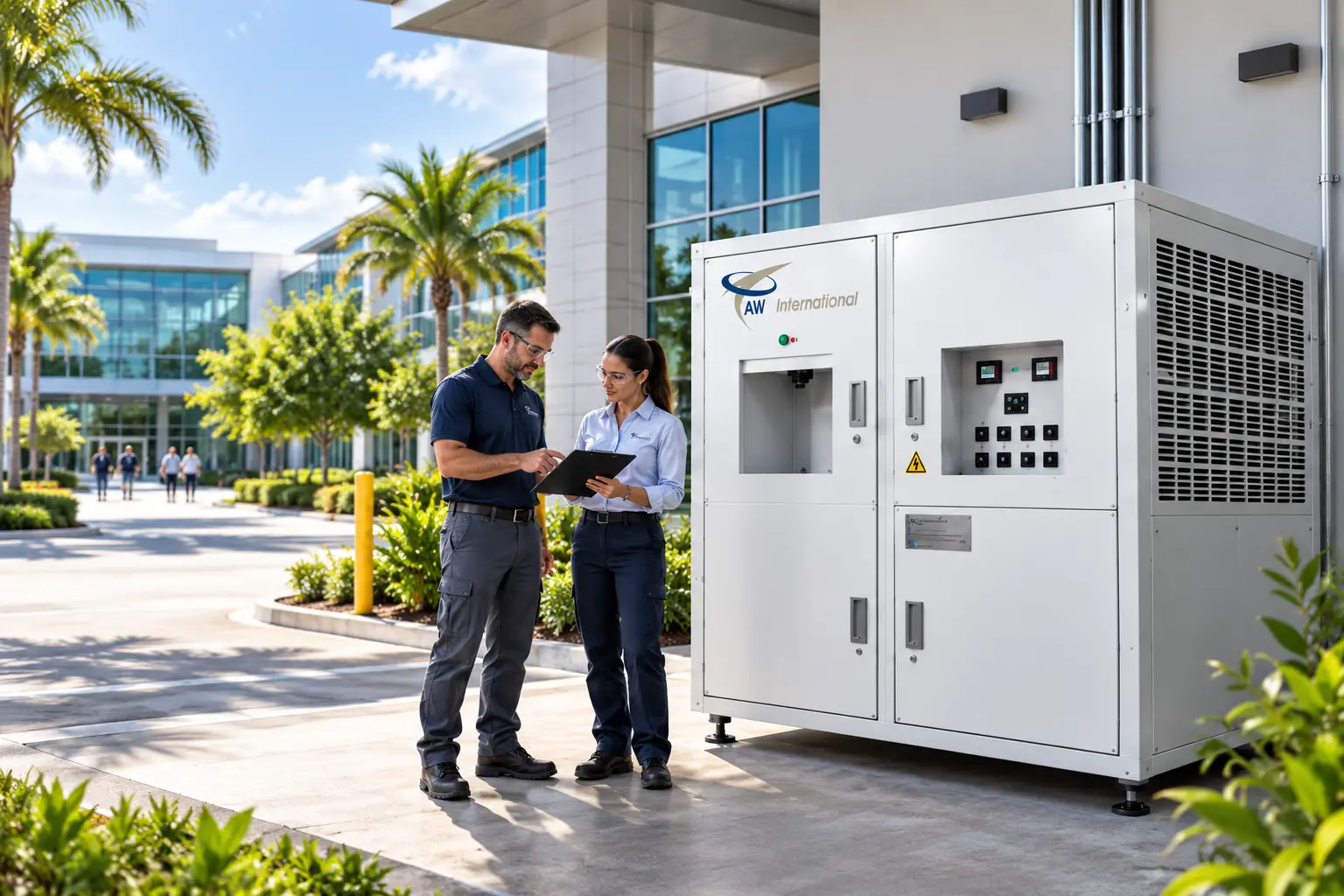

Applications
Where the high-volume system fits
- Hotels and resorts.
- Clinics, healthcare facilities and schools.
- Offices, restaurants and commercial buildings.
- Factories and industrial sites.
- Housing developments and central community water points.
- Remote communities and humanitarian or emergency deployments.
- Agricultural facilities and workforce water supply.
- Government and public infrastructure.
Operation

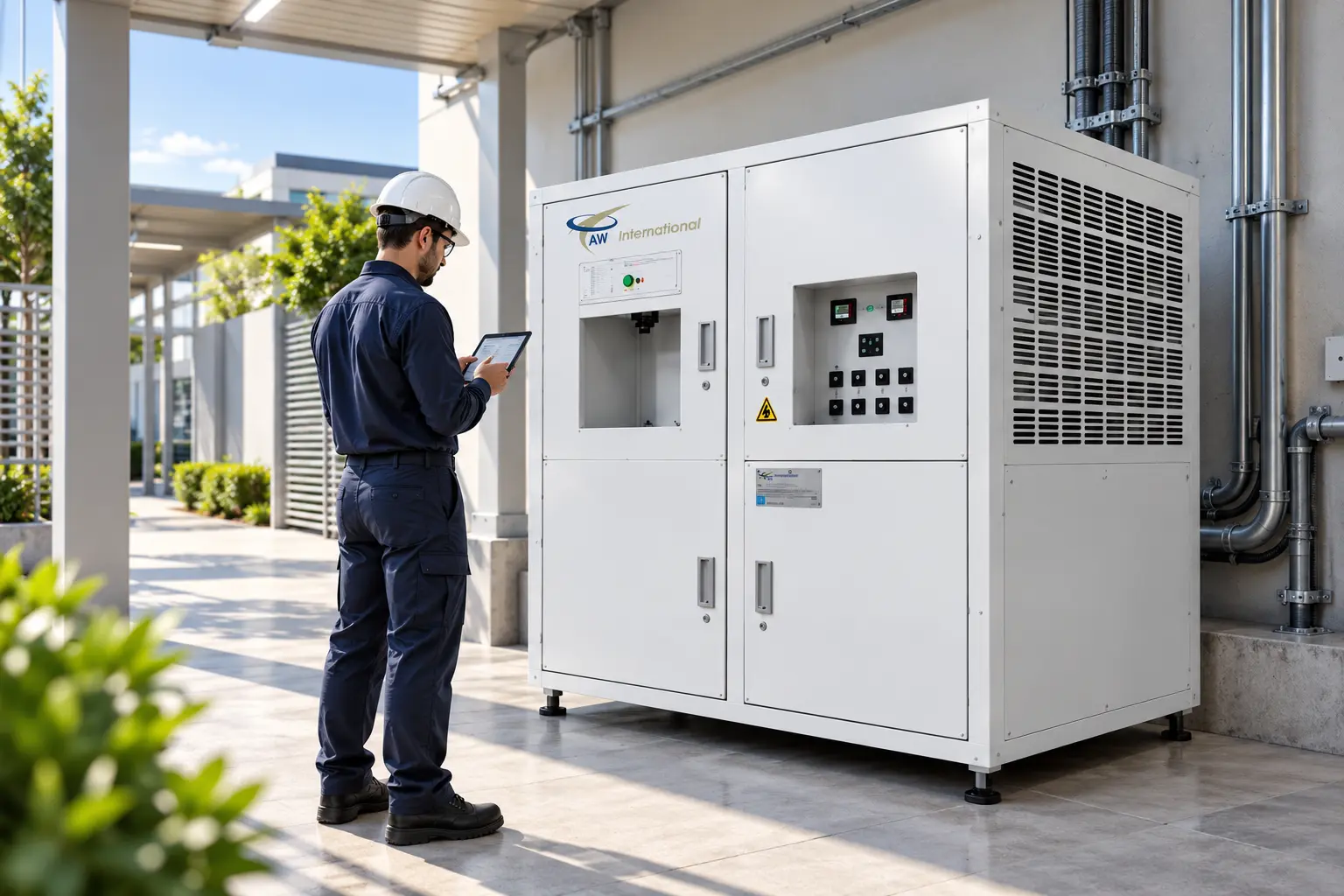

Automation and monitoring
The supplied presentation describes a fully automated operating process and an optional network-monitoring capability. Available control, outdoor, mobility and monitoring features should be confirmed for the final market configuration.
Specification
Technical specification
| AW International model | AWI1000L |
|---|---|
| Application | Large drinking-water generator for restaurant, office and larger-site use |
| External dimensions | 1,700 mm W × 1,450 mm D × 1,920 mm H |
| Weight | 890 kg |
| Rated voltage | Three-phase 380 V |
| Power consumption | 12 kWh; maximum 15.5 kWh — notation as stated in supplied sheet and to be confirmed |
| Daily production | Approximately 900 liters (237.8 US gallons) rated daily output; up to 1,000 liters (264.2 US gallons) per day at 30°C and 80% relative humidity |
| Storage | 600 litres standard; larger engineered storage subject to approved project configuration |
| Airflow | 5,100 CMH with EC motor |
| Heat exchanger | Fin type |
| Flow-control pump | Diaphragm type, 1 litre/minute |
| Air intake filter | E11 Grade HEPA Filter |
| Water treatment | Three-stage water filtration including a 5-micron filter, activated carbon and ultrafiltration. |
| UV protection | 39 W continuous UV lamp plus UV LEDs in circulation and draw lines |
| Stored-water protection | Periodic circulation through the protection system |
